V2 Front Mount Canopy Air Vent with Filter
V2 Front Mount Canopy Air Vent with Filter
Couldn't load pickup availability
Rogue Canopies Front Mount Canopy Air Vents are a low profile, universal bolt-on product designed to be mounted on the front or back on a canopy, to allow clean airflow while restricting dust and water ingress.
By allowing air to flow in and out of your canopy, a positive pressure environment can be created that reduces the likelihood of dust being sucked in through gaps and seals in your canopy. Adding ventilation to your canopies can also improve internal temperatures and reduce condensation.
FEATURES
- Low-profile design, only 13mm externally
- Removable air filter from the inside of the canopy without the need to access the external bolt heads
- Aluminium construction
HOW IT WORKS
The design is simple but effective, with two externally mounted plates separating out most of the solid objects like dust, bugs and water before air makes it through to the filter.
The filter is mounted internally and has its own seal, which is held firmly against the mounting surface, forcing air to pass through it before entering the canopy.
The filter is a flat panel style pleated paper filter with a seal on the face side.
FAQ'S AND FITMENT ADVICE
Click the image below to read our frequently asked questions.
VOLUME DISCOUNTS
Buy 2-3 units and get an automatic 10% discount applied at checkout.
If buying 4 or more units, get in touch for additional bulk pricing.
SPECIFICATIONS
- Brand: Rogue Canopies
- Material: Aluminium
- Finish: Optional raw aluminium, or powder coated white or black.
- Weight without fan: 700g (0.7kgs)
-
External dimensions: 200mm wide x 157mm high x 13mm
- Internal dimensions: 22mm
- Hole/cut-out size: 148mm wide x 98mm high
PACK CONTENTS

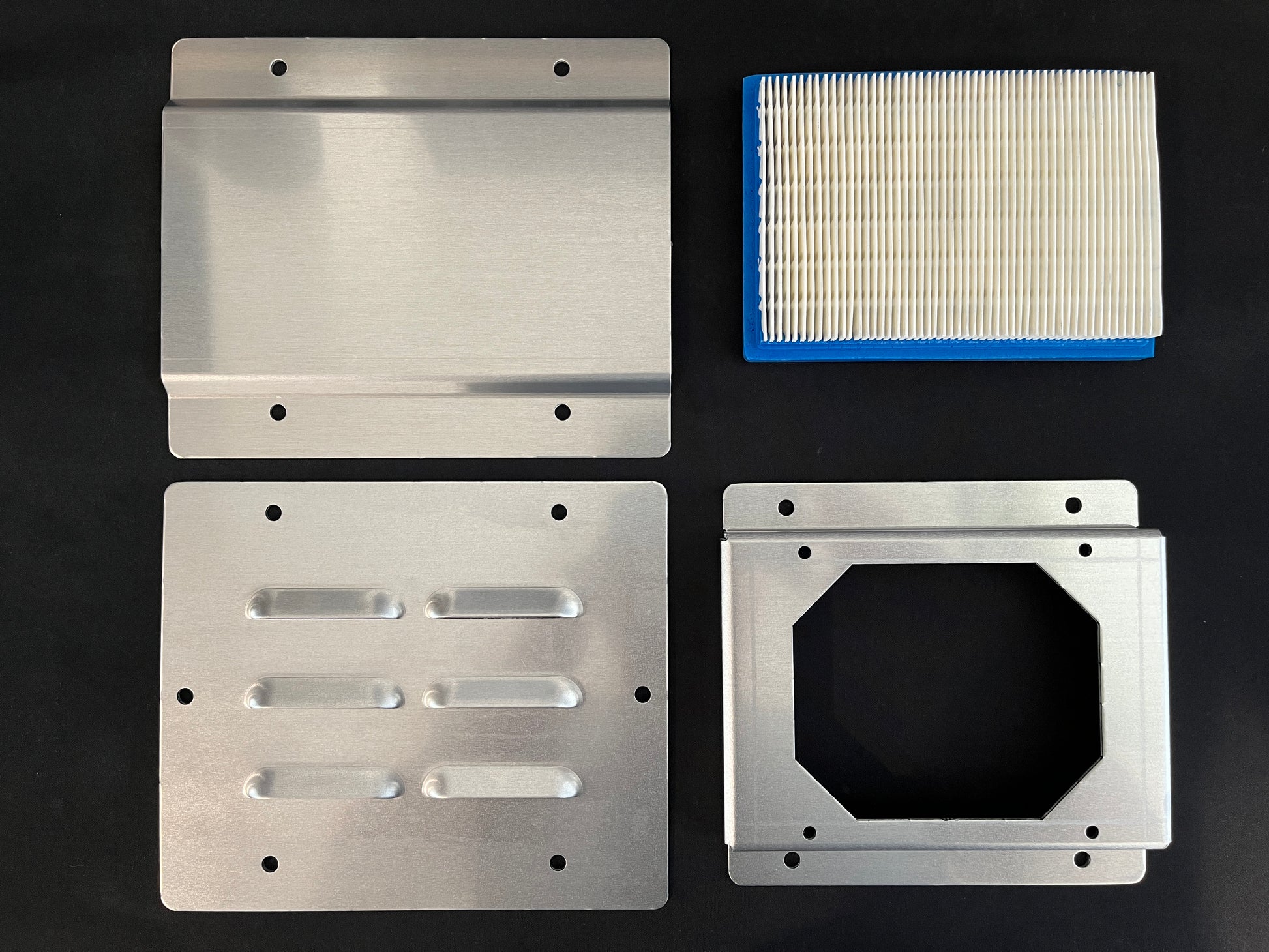

1x Bolt-on Air Vent, consisting of:
- 1x Front Intake Cover
- 1x Louvered Vent Plate
- 1x Filter Housing
- 1x Air Filter
- Stainless steel assembly & fitting hardware
Notes: each vent will come completely disassembled, ready for fitment. Roof seal not included. We do recommend fitment using roof sealant.
OFTEN PURCHASED WITH:
FITTING INSTRUCTIONS
Notes: The photos showing the vent fitted to a canopy are a non-bolt on design that these vents are based off, so while the concept is the same for these bolt-on units, the difference is that the louvered panel will also be bolted onto the front under the external cover.
Disclaimer: While we have completed rigorous testing and are satisfied with the results, any vent or hole in your canopy has the potential to leak if used incorrectly, not properly sealed, submerged or exposed to extreme pressure, weather events or hoses/car washes. You are responsible for the proper installation, use and regular maintenance of this product including inspection and adjustment for wear, damage and seal integrity. Rogue Canopies will not be held liable for any leaks or damage to property as a result of installing this product.
